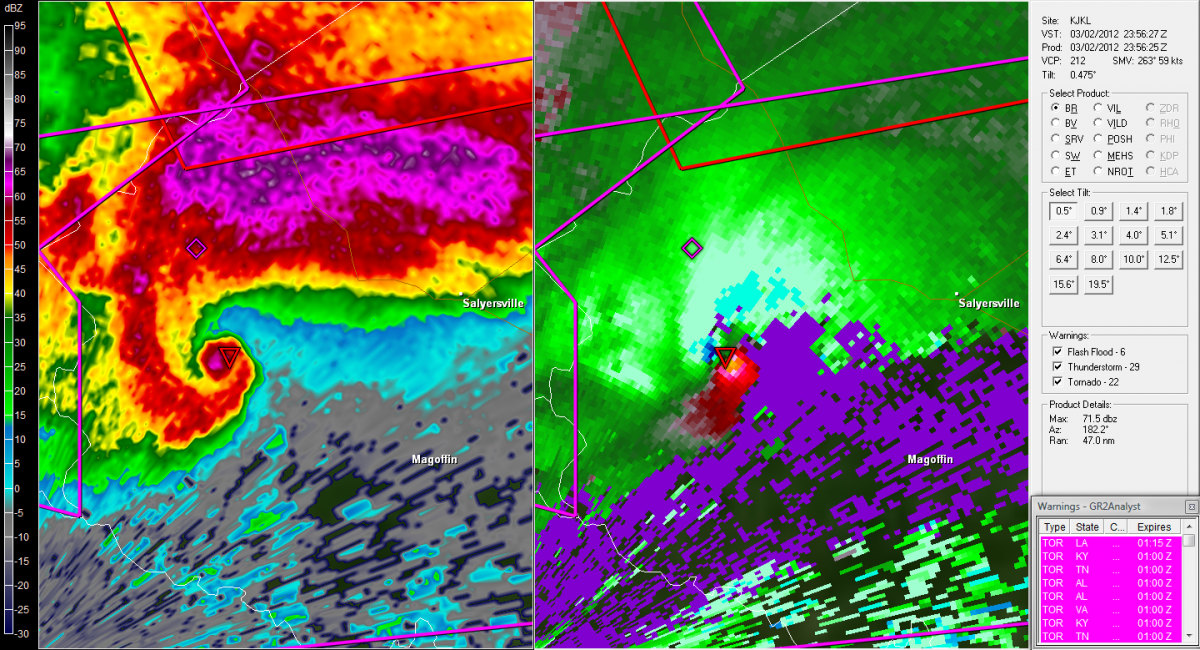

Wxradar 30623 Posted March 24, 2016 Share Posted March 24, 2016 Hello I was wondering if you have any of the following color table codes for the following pictures? (Base Reflectivity) because I am not good with making color tables. Please Help, there aren't many people here in San Diego CA who have this program to teach me how to make the following color tables. (Base Reflectivity only or picture on left. Link to comment Share on other sites More sharing options...
tornadohunter Posted March 25, 2016 Share Posted March 25, 2016 http://almanydesigns.com/grx/reflectivity/ Check here for color tables.... Link to comment Share on other sites More sharing options...
Wxradar 30623 Posted March 25, 2016 Author Share Posted March 25, 2016 I saw that website a while ago, I was trying to make this color table and I really would like to use this one. Link to comment Share on other sites More sharing options...
tornadohunter Posted March 25, 2016 Share Posted March 25, 2016 This is sample code. product: BRunits: dBZstep: 5color: -20 0 0 0color: 5 29 37 60color: 15 86 166 209color: 20 85 255 92 5 33 0color: 38 84 102 29color: 40 255 255 0 255 133 5color: 50 255 0 0 105 0 0color: 60 255 255 255 255 186 255color: 65 255 125 255 222 13 225color: 70 187 0 224 116 12 163color: 75 92 255 160 0 0 0color: 85 0 0 0color: 95 0 0 0 Format color: dbz unit, r, g, b , hue, saturation, b (not sure what this b is) Link to comment Share on other sites More sharing options...
Wxradar 30623 Posted March 25, 2016 Author Share Posted March 25, 2016 Thanks again for trying to help, I made the color table and it looks good. Have a nice day! Link to comment Share on other sites More sharing options...
Eskimo Joe Posted March 31, 2016 Share Posted March 31, 2016 WxRadar, can you post the settings for the color table that you just made? Thanks. Link to comment Share on other sites More sharing options...
Wxradar 30623 Posted April 1, 2016 Author Share Posted April 1, 2016 Are you talking about the color table codes? I made a different color table looks close to baron but custom. Link to comment Share on other sites More sharing options...
Shawn Posted December 7, 2016 Share Posted December 7, 2016 Okay for those still wondering, I have come up with something that is very close. It could use some slight tweaks (like it goes to white colors at 69dbz vs 70dbz) but it definitely works and will pass for now. Here is the colortable code: Product: BR Units: DBZ Step: 5 Color: -30 5 5 83 Color: -25 40 40 95 Color: -20 74 74 107 Color: -15 103 103 116 Color: -10 119 119 119 Color: -5 55 170 166 Color: 0 2 214 219 Color: 5 2 160 209 Color: 10 4 124 202 Color: 15 0 242 0 Color: 20 0 196 0 Color: 25 0 155 0 Color: 30 0 113 0 Color: 35 113 168 0 Color: 40 254 246 0 Color: 45 255 155 0 Color: 50 247 57 0 Color: 55 134 0 0 Color: 60 216 0 179 Color: 65 103 1 103 Color: 70 232 217 232 Color: 75 239 239 239 Color: 80 165 165 165 Color: 85 102 102 102 Color: 90 69 69 69 Color: 95 13 13 13 And here is the preview image I just took from the above color codes: Link to comment Share on other sites More sharing options...
