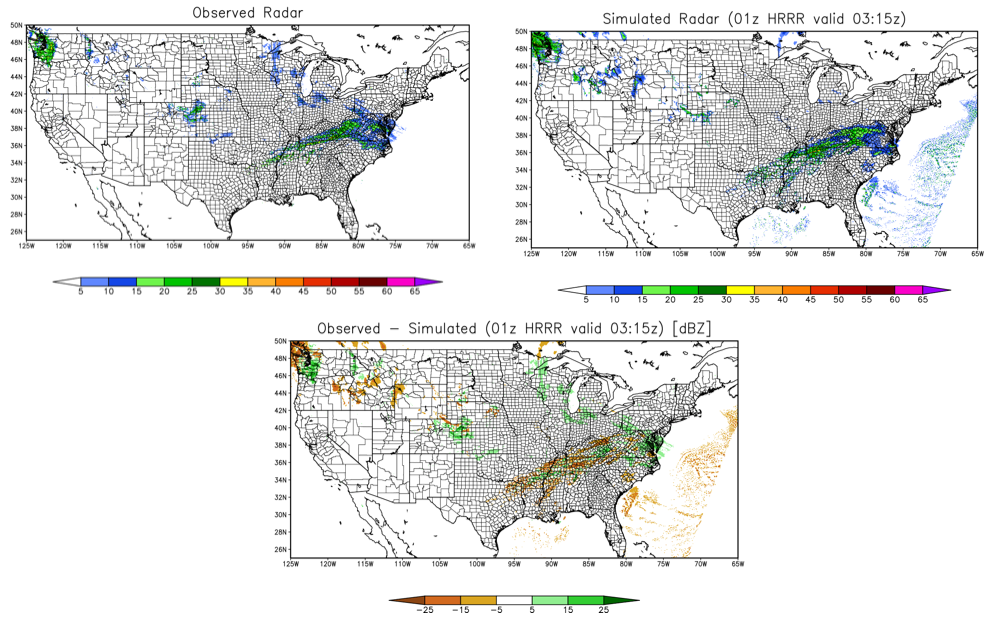

Jmister Posted February 15, 2016 Share Posted February 15, 2016 Hey kids! Are you tired of those radar hallucinations making you wonder if that precip was supposed to be THAT far north yet?! Frustrated when switching tabs between simulated radar and observed radar because the grids are not identical? Well read on!! Introducing the radar comparison experiment! The tool that generates identical grids of near real-time radar and simulated radar from HRRR and NAM 4km and shows you the quantitative difference between them! I welcome any suggestions and comments as I continue to build this tool! HRRR: www.jmmweather.com/HRRR.html NAM4km: www.jmmweather.com/NAM.html Link to comment Share on other sites More sharing options...
Mallow Posted February 15, 2016 Share Posted February 15, 2016 Very cool! You comparing composite reflectivity for both the simulated and observed? Link to comment Share on other sites More sharing options...
thewxmann Posted February 15, 2016 Share Posted February 15, 2016 Lots of potential in this, looking forward to more especially in the severe wx season. Link to comment Share on other sites More sharing options...
Jmister Posted February 15, 2016 Author Share Posted February 15, 2016 Very cool! You comparing composite reflectivity for both the simulated and observed? The modeled radar data is reflectivity at 1000 m. I am pretty sure the observed mosaic radar is composite 0.5 degree reflectivity but am not 100% on that. Thoughts on expanding to compare current radar to older runs of NAM and HRRR? Any other sources to compare? Link to comment Share on other sites More sharing options...
Ellinwood Posted February 18, 2016 Share Posted February 18, 2016 This is pretty neat. Love what you have already... looking forward to seeing what else you'll put up. I see you have already made a Northeast sub-region. I imagine that other sub-regions (like north-central and south-central U.S.) would also be greatly beneficial. Link to comment Share on other sites More sharing options...
