Hurricane Sandy - LIVE - Impacts


Recommended Posts

  • Replies 352
  • Created
  • Last Reply

RECORD EVENT REPORT

NATIONAL WEATHER SERVICE NEW YORK NY

949 PM EST MON OCT 29 2012

..RECORD HIGH WATER LEVEL AT THE BATTERY NY

A RECORD HIGH WATER LEVEL OF 13.88 FEET WAS SET AT THE BATTERY NY

TODAY AT 9:24 PM. THIS BREAKS THE OLDEST OFFICIAL RECORD OF 10.02

FEET SET IN 1960 WITH HURRICANE DONNA.

Was the old record at the Battery 10.02 ft or 11.2 ft? I'm seeing conflicting reports. Anyone?

Link to comment
Share on other sites

Was the old record at the Battery 10.02 ft or 11.2 ft? I'm seeing conflicting reports. Anyone?

actually, both are accurate. The 10.02 ft is for Donna as the highest recorded height in modern times. The 11.2 ft number is the estimate for the hurricane of 1821, which held the record until last night. So in 300 years of recorded history, Sandy beat the old record of 1821 by 2.7 feet. Sandy might be a 500-1000 year event given standard deviations over a 300 year period of record.

Link to comment
Share on other sites

According to neighbors that stayed behind, my house is in bad shape. All houses flooded and ours sits lowest. 7 ft of water came through. I'm itching to get over there. I may have nothing but a couple of bedrooms left on the 2nd floor.

So sorry to hear. Thoughts are with you. :(

Link to comment
Share on other sites

actually, both are accurate. The 10.02 ft is for Donna as the highest recorded height in modern times. The 11.2 ft number is the estimate for the hurricane of 1821, which held the record until last night. So in 300 years of recorded history, Sandy beat the old record of 1821 by 2.7 feet. Sandy might be a 500-1000 year event given standard deviations over a 300 year period of record.

Awesome-- thank you very much for thins info. I owe ya one. :wub:

Link to comment
Share on other sites

actually, both are accurate. The 10.02 ft is for Donna as the highest recorded height in modern times. The 11.2 ft number is the estimate for the hurricane of 1821, which held the record until last night. So in 300 years of recorded history, Sandy beat the old record of 1821 by 2.7 feet. Sandy might be a 500-1000 year event given standard deviations over a 300 year period of record.

Here are the official records from the NOAA Tide and Current site. I have no idea where 1821 comes from. As you can see by the records, there is no 1800 anything there. first, here is the station page for the Battery http://tidesandcurrents.noaa.gov/geo.shtml?location=8518750

Click on "Extremes", enter 1800 for the beginning date, from the drop-down choose "Station Extremes Report"

Extremes
					  Highest and Lowest Values

Station:  8518750									   Begin Date:  18000503
Name:	 The Battery, NY							   End   Date:  20121030
Product:  High/Low									  Units:	   Feet
Datum:    StnDatum									  Quality:	 Verified

	  Rank Highest  Highest Date  Zone  Lowest   Lowest Date  Zone
	  ---- ------- -------------- ---- ------- -------------- ----
		 1   13.30 19600912 13:00  LST   -1.00 19760202 16:30  LST
		 2   12.99 19921211 14:00  GMT   -0.91 19780110 16:12  LST
		 3   12.80 20110828 12:42  GMT   -0.50 19660109 04:24  LST
		 4   12.09 20100313 23:42  GMT   -0.24 19800316 02:06  LST
		 5   12.01 19911031 03:36  LST   -0.23 19800316 00:00  LST
		 6   11.81 19840329 08:12  LST   -0.19 19850208 17:24  LST
		 7   11.73 19921212 02:18  GMT   -0.15 19710127 15:36  LST
		 8   11.66 19870102 10:30  LST   -0.13 19690102 01:12  LST
		 9   11.64 19930314 05:00  GMT   -0.10 19760317 15:42  LST
	    10   11.62 19681112 10:42  LST   -0.01 19800315 13:36  LST

Oct 30 2012 15:29 GMT    ELEVATIONS ON STATION DATUM
				    National Ocean Service (NOAA)

Station:  8518750										   T.M.:		 0 W
Name:	 The Battery, NY								   Units:	   Feet
Status:   Accepted (Apr 17 2003)						    Epoch:  1983-2001
													    Datum:	   STND

	  Datum		 Value  Description
	  ---------  --------  ----------------------------------------
	  MHHW		   8.34  Mean Higher-High Water
	  MHW		    8.02  Mean High Water
	  NAVD88		 6.07  North American Vertical Datum of 1988
	  MSL		    5.86  Mean Sea Level
	  DTL		    5.82  Mean Diurnal Tide Level
	  MTL		    5.76  Mean Tide Level
	  MLW		    3.49  Mean Low Water
	  MLLW		   3.29  Mean Lower-Low Water
	  STND		   0.00  Station Datum

	  GT			 5.06  Great Diurnal Range
	  MN			 4.53  Mean Range of Tide
	  DHQ		    0.32  Mean Diurnal High Water Inequality
	  DLQ		    0.21  Mean Diurnal Low  Water Inequality
	  HWI		    0.84  Greenwich High Water Interval (in Hours)
	  LWI		    7.21  Greenwich Low  Water Interval (in Hours)
	  Maximum	   13.30  Highest Observed Water Level
	  Max Date   19600912  Highest Observed Water Level Date
	  Max Time	  13:00  Highest Observed Water Level Time
	  Minimum	   -1.00  Lowest  Observed Water Level
	  Min Date   19760202  Lowest  Observed Water Level Date
	  Min Time	  16:30  Lowest  Observed Water Level Time

Link to comment
Share on other sites

Here are the official records from the NOAA Tide and Current site. I have no idea where 1821 comes from. As you can see by the records, there is no 1800 anything there. first, here is the station page for the Battery http://tidesandcurre...ocation=8518750

Click on "Extremes", enter 1800 for the beginning date, from the drop-down choose "Station Extremes Report"

The NWS in NYC mentioned 10.02 ft for Donna, so...?

Link to comment
Share on other sites

Good question... I haven't figured that out yet.

Donna was 1960 on that September date. It's possible they are talking about surge and not the total water column height. It could be Donna came through at low tide

I'm thinking the higher value is above mean low water or something like that. In my blog post about Sandy and Donna and 1821, I used the 10.02 value: http://icyclone.com/...tober-2012.html

Link to comment
Share on other sites

Here are the official records from the NOAA Tide and Current site. I have no idea where 1821 comes from. As you can see by the records, there is no 1800 anything there. first, here is the station page for the Battery http://tidesandcurrents.noaa.gov/geo.shtml?location=8518750

I hear ya Dacula. I'm just relaying what TWC and local NYC media have been saying over the last day. 1821 from my blurb above was an estimate from way back then. I think official readings started in the early 1900's if I recall. The 10.02 number from Josh is what was reported as the record that was officially broken, and the 11.2 number is the record that was unofficallly broken.

Link to comment
Share on other sites

I hear ya Dacula. I'm just relaying what TWC and local NYC media have been saying over the last day. 1821 from my blurb above was an estimate from way back then. I think official readings started in the early 1900's if I recall. The 10.02 number from Josh is what was reported as the record that was officially broken, and the 11.2 number is the record that was unofficallly broken.

Bingo-- and I revised my blog post to reflect that. Thanks for your help: http://icyclone.com/now/2012/oct/30-october-2012.html

Link to comment
Share on other sites

16 people killed in AC alone...

Unreal. Sounds like it was people who didn't heed the mandatory evac orders. Just so sad.

Ps, Christie vs AC mayor blame game in full swing right now.

I think the AC mayor is going to come out on the short end of that blame game. Christie was pi$$ed yesterday that his evac order was countermanded by the mayor, who told people to seek shelters. Several citizens confirm the mayor said that, which of course he now denies. I would imagine some lawsuits out of that mess if true.

Link to comment
Share on other sites

But you'll notice many values that fall above the 11.2.

I was correcting TWC last night on their Tweets... I'd like to know where they are getting the data, I'd like to see it. You would think NOAA would be correct.

blurb from MSNBC among many other outlets. Doesn't mean their right though:

Seawater surged into lower Manhattan and areas of Brooklyn, submerging entire streets and parks Monday. An all-time record tide level of 13.88 feet was set at The Battery in Lower Manhattan, Monday night, breaking the previous record of 11.2 feet from 1821

Link to comment
Share on other sites

Yes... they got the 13.88 correct. I just have no idea where the rest of it comes from. I think a lot of information getting passed around last night was incorrect. Once a person gets it, tweet's it again, 20 people retweet.... and on and on until it becomes "fact".

And I guess my point is that there are 9 records ahead of that 11.2 reading they keep quoting.

At The Battery, the MLLW is about .1 feet (zero for all practical purposes). That's the "normal" level at low tide. They vary on average, 5.06' for great diurnal range or 4.53' mean range of tide. The 13.88 is feet above MLLW. The difference between the 13.88 and the projected tide yesterday is the amount of storm surge.

I'd love to find out where this other data is and who's keeping it!

Link to comment
Share on other sites

The 13.30 feet you see here for 12 September 1960 (Hurricane Donna) refers to the water level above station datum (see Datum: StnDatum). But mean lower-low water lies 3.29 feet above station datum. The 10.01 feet (or 10.02 feet) often cited hereon and elsewhere for Hurricane Donna refers to the surge above mean lower-low water. Station datum varies somewhat arbitrarily from station to station, whereas mean lower-low water describes a particular level on the diurnal tidal cycle (the average of the lowest low tide of each diurnal double tidal cycle). Yesterday, the water level at the Battery in New York City reached 13.88 feet above mean lower-low water (or 17.17 feet above station datum).

The storm surge cited for 1821 comes from historical estimates of that storm of unknown accuracy.

Here are the official records from the NOAA Tide and Current site. I have no idea where 1821 comes from. As you can see by the records, there is no 1800 anything there. first, here is the station page for the Battery http://tidesandcurre...ocation=8518750

Click on "Extremes", enter 1800 for the beginning date, from the drop-down choose "Station Extremes Report"

Extremes
					 Highest and Lowest Values

Station: 8518750									 Begin Date: 18000503
Name:	 The Battery, NY							 End Date: 20121030
Product: High/Low									 Units:	 Feet
Datum: StnDatum									 Quality:	 Verified

	 Rank Highest Highest Date Zone Lowest Lowest Date Zone
	 ---- ------- -------------- ---- ------- -------------- ----
		 1 13.30 19600912 13:00 LST -1.00 19760202 16:30 LST
		 2 12.99 19921211 14:00 GMT -0.91 19780110 16:12 LST
		 3 12.80 20110828 12:42 GMT -0.50 19660109 04:24 LST
		 4 12.09 20100313 23:42 GMT -0.24 19800316 02:06 LST
		 5 12.01 19911031 03:36 LST -0.23 19800316 00:00 LST
		 6 11.81 19840329 08:12 LST -0.19 19850208 17:24 LST
		 7 11.73 19921212 02:18 GMT -0.15 19710127 15:36 LST
		 8 11.66 19870102 10:30 LST -0.13 19690102 01:12 LST
		 9 11.64 19930314 05:00 GMT -0.10 19760317 15:42 LST
	 10 11.62 19681112 10:42 LST -0.01 19800315 13:36 LST

Oct 30 2012 15:29 GMT ELEVATIONS ON STATION DATUM
				 National Ocean Service (NOAA)

Station: 8518750										 T.M.:		 0 W
Name:	 The Battery, NY								 Units:	 Feet
Status: Accepted (Apr 17 2003)						 Epoch: 1983-2001
													 Datum:	 STND

	 Datum		 Value Description
	 --------- -------- ----------------------------------------
	 MHHW		 8.34 Mean Higher-High Water
	 MHW		 8.02 Mean High Water
	 NAVD88		 6.07 North American Vertical Datum of 1988
	 MSL		 5.86 Mean Sea Level
	 DTL		 5.82 Mean Diurnal Tide Level
	 MTL		 5.76 Mean Tide Level
	 MLW		 3.49 Mean Low Water
	 MLLW		 3.29 Mean Lower-Low Water
	 STND		 0.00 Station Datum

	 GT			 5.06 Great Diurnal Range
	 MN			 4.53 Mean Range of Tide
	 DHQ		 0.32 Mean Diurnal High Water Inequality
	 DLQ		 0.21 Mean Diurnal Low Water Inequality
	 HWI		 0.84 Greenwich High Water Interval (in Hours)
	 LWI		 7.21 Greenwich Low Water Interval (in Hours)
	 Maximum	 13.30 Highest Observed Water Level
	 Max Date 19600912 Highest Observed Water Level Date
	 Max Time	 13:00 Highest Observed Water Level Time
	 Minimum	 -1.00 Lowest Observed Water Level
	 Min Date 19760202 Lowest Observed Water Level Date
	 Min Time	 16:30 Lowest Observed Water Level Time

Link to comment
Share on other sites

NOUS41 KOKX 301640
PNSOKX
CTZ009>012-NJZ006-106-108-NYZ071>075-078>081-176>179-310445-
PUBLIC INFORMATION STATEMENT
NATIONAL WEATHER SERVICE NEW YORK NY
1240 PM EDT TUE OCT 30 2012

...MAXIMUM WATER LEVELS FROM POST-TROPICAL CYCLONE SANDY AND
ACCOMPANYING SURGE...
UNITED STATES GEOLOGICAL SURVEY GAUGES
 MAXIMUM ASTRONOMICAL STORM
LOCATION WATER LEVEL TIDE LEVEL SURGE TIME
FREEPORT 10.12 FT NGVD 2.27 FT NGVD 7.85 FT 930 PM
REYNOLDS CHANNEL 10.10 FT NGVD 2.32 FT NGVD 7.78 FT 906 PM
LINDENHURST 7.73 FT NGVD 1.47 FT NGVD 6.26 FT 1006 PM
EAST ROCKAWAY 10.80 FT NGVD 2.72 FT NGVD 8.08 FT 842 PM
JAMAICA 11.65 FT NGVD 3.28 FT NGVD 8.37 FT 936 PM
ROCKAWAY 11.75 FT NGVD 2.81 FT NGVD 8.94 FT 924 PM
NATIONAL OCEAN SERVICE GAUGES
 MAXIMUM ASTRONOMICAL STORM
LOCATION WATER LEVEL TIDE LEVEL SURGE	 TIME
BERGEN POINT 14.60 FT MLLW 5.15 FT MLLW 9.45 FT 924 PM
BATTERY 13.88 FT MLLW 4.65 FT MLLW 9.23 FT 924 PM
KINGS POINT 14.38 FT MLLW 5.60 FT MLLW 8.78 FT 1000 PM
BRIDGEPORT 13.26 FT MLLW 5.31 FT MLLW 7.95 FT 1006 PM
NEW HAVEN 12.30 FT MLLW 3.97 FT MLLW 8.33 FT 930 PM
NEW LONDON 8.04 FT MLLW 2.08 FT MLLW 5.96 FT 812 PM
MONTAUK 7.12 FT MLLW 1.88 FT MLLW 5.24 FT 812 PM

NGVD = NATIONAL GEODETIC VERTICAL DATUM OF 1929
MLLW = MEAN LOWER LOW WATER
STORM SURGE IS DEFINED AS THE ABNORMAL RISE OF WATER GENERATED BY
A STORM...OVER AND ABOVE THE PREDICTED ASTRONOMICAL TIDE. THE
MAXIMUM WATER LEVEL...OR STORM TIDE...IS THE SUM OF THE
ASTRONOMICAL TIDE LEVEL AND STORM SURGE.
FOR THE PURPOSES OF THE TABLES ABOVE...THE MAXIMUM WATER LEVEL
WAS THE HIGHEST WATER LEVEL RECORDED AT THE DESIGNATED GAUGE. THE
ASTRONOMICAL TIDE LEVEL WAS THE PREDICTED TIDE LEVEL FOR THE TIME
THAT THE MAXIMUM WATER LEVEL WAS MEASURED. THE STORM SURGE WAS
CALCULATED BY SUBTRACTING THE ASTRONOMICAL TIDE LEVEL FROM THE
MAXIMUM WATER LEVEL.
$$
MALOIT

Link to comment
Share on other sites

Move Jeff L (HCFCD):

Events continue to unfold from record breaking storm event over the NE US.

Governor of NJ: “Damage to the Jersey coast is unprecedented.”

Death toll has risen to 33 up from 16 this morning with damage estimated now at 45 billion dollars!

Severe flooding and rescues continue in the NE part of New Jersey where levees were overtopped by the storm surge inundating three towns.

8.1 million people are now without power and estimated restoration times range from 7 days to over 2 weeks.

80 homes have burned in Queens, New York due to a fire started by arcing power line and then spread from house to house by strong winds.

Helicopter views of the New Jersey coast reveal “incredible damage”. Barrier islands have been cut in half in some places with structures heavy damaged and large 20-25 foot protective dunes completely gone.

50% of Hoboken, NJ has been flooded with sea water.

NJ transit system will be closed until further notice due to damage. Damage to NYC transit system is still not fully known, but it is extensive.

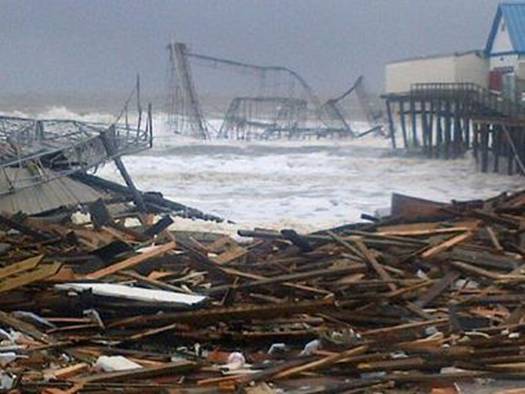

Seaside Heights Boardwalk (Famous from MTV’s Jersey Shore) is gone:

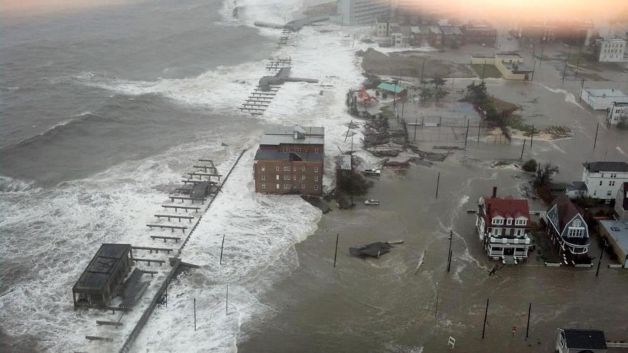

Atlantic City, NJ (remains of boardwalk):

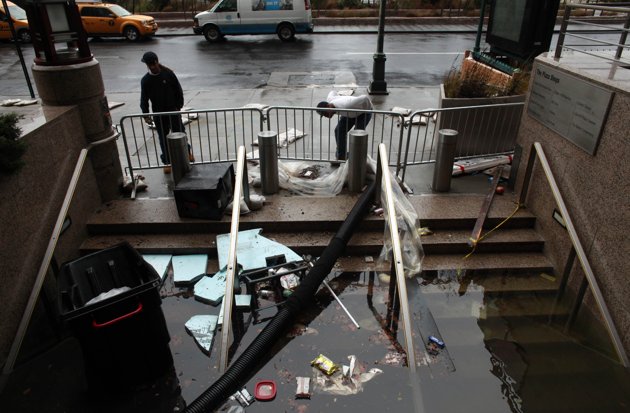

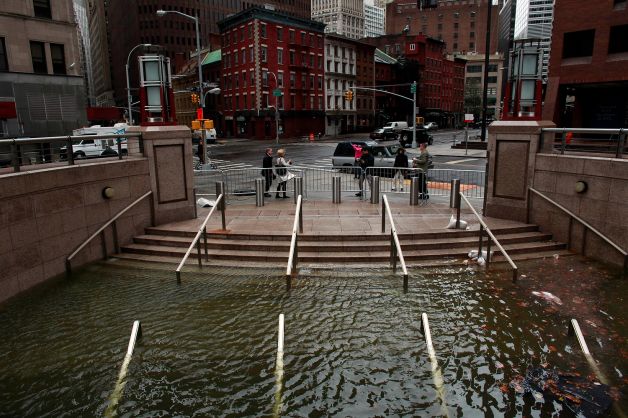

Subway Enterance (NYC):

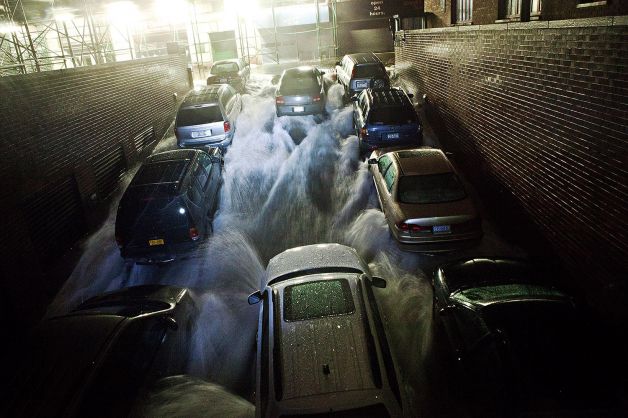

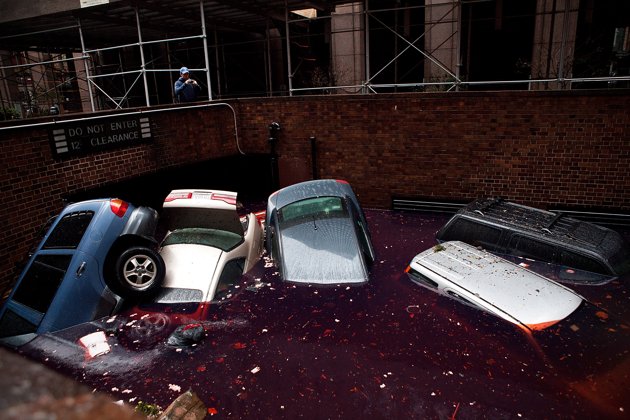

NYC

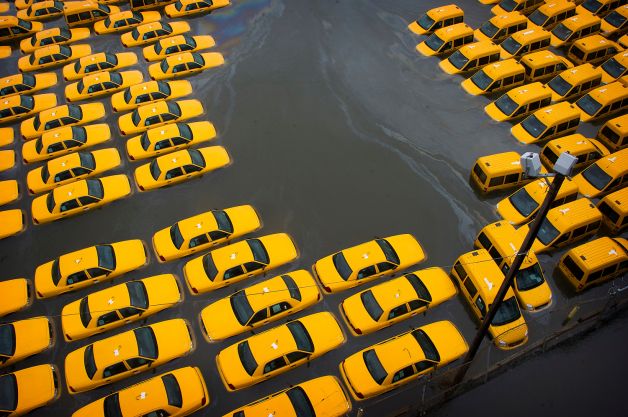

Hoboken, NJ


Link to comment
Share on other sites

My Mom, up in the W 80s of Manhattan, says things are slowly getting back to normal today.

There are some trees down, and Riverside Park is a mess-- the Hudson had jumped over the banks and onto the pedestrian walks leaving mud and sludge everywhere. And the streets are rather quiet. But they have power-- they never lost it, actually-- and about 2/3 of the businesses are open. Food places like Zabar's are doing brisk business.

Uptown is higher elevation and they clearly did much better than Downtown.

Link to comment
Share on other sites

My Mom, up in the W 80s of Manhattan, says things are slowly getting back to normal today.

There are some trees down, and Riverside Park is a mess-- the Hudson had jumped over the banks and onto the pedestrian walks leaving mud and sludge everywhere. And the streets are rather quiet. But they have power-- they never lost it, actually-- and about 2/3 of the businesses are open. Food places like Zabar's are doing brisk business.

Uptown is higher elevation and they clearly did much better than Downtown.

very true...however the upper east side along the east river had some pretty large tree damage to about 2nd avenue. My car was parked on a lot on 97th st and 1st ave and the east river (along FDR) flooded here to almost 4ft. 150 cars , including mine, totaled.

Link to comment
Share on other sites

very true...however the upper east side along the east river had some pretty large tree damage to about 2nd avenue. My car was parked on a lot on 97th st and 1st ave and the east river (along FDR) flooded here to almost 4ft. 150 cars , including mine, totaled.

I think the damage to the east side was probably more extensive given the winds. Right along the water the gusts right here had to be over 80mph at times.

Link to comment
Share on other sites
