thewxmann Posted June 15, 2011 Share Posted June 15, 2011 Never heard this word used in an MCD ever. Heck, I haven't even seen that word before. I suppose its the alter-form of dilation? Link to comment Share on other sites More sharing options...
k*** Posted June 15, 2011 Share Posted June 15, 2011 Typhoon tip is writing MCDs now. Link to comment Share on other sites More sharing options...
AtticaFanatica Posted June 15, 2011 Share Posted June 15, 2011 If your flow is one of pure deformation (no vorticity and no divergence), the axis of dilatation is the axis where air parcels are being stretched relative to their width. Link to comment Share on other sites More sharing options...
baroclinic_instability Posted June 15, 2011 Share Posted June 15, 2011 Never heard this word used in an MCD ever. Heck, I haven't even seen that word before. I suppose its the alter-form of dilation? As Attica mentioned the axis of dilatation is part of deformation flow and it is quite a common synoptic flow pattern both at the surface and upper levels commonly associated with frontogenesis through deformation. In fact the frontogenesis equation has components due to horizontal deformation. Link to comment Share on other sites More sharing options...

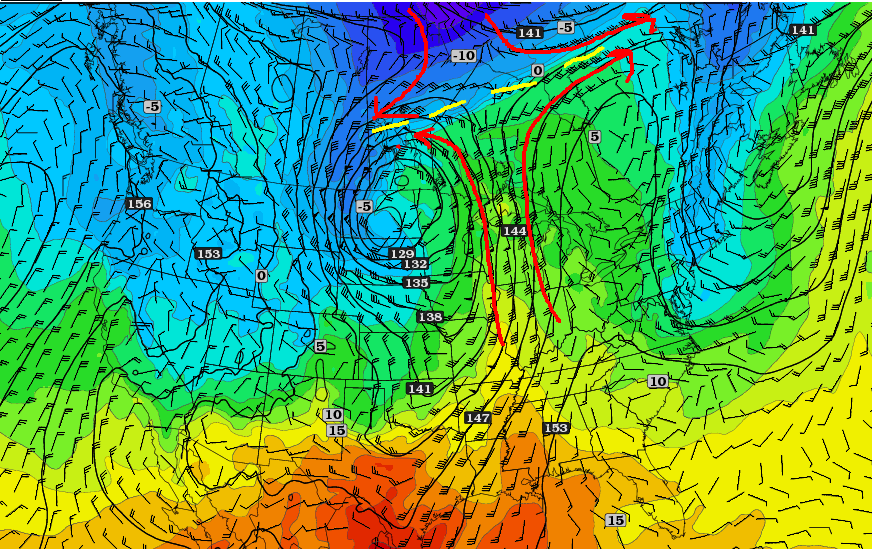

baroclinic_instability Posted June 15, 2011 Share Posted June 15, 2011 Here is an example from this winter--yellow is the axis of dilatation and you can also see how a frontal could be enhanced (frontogenesis): Link to comment Share on other sites More sharing options...
thewxmann Posted June 15, 2011 Author Share Posted June 15, 2011 Ah, makes sense. Thanks for the explanation (and the illustration, which was very helpful). Link to comment Share on other sites More sharing options...
mayjawintastawm Posted June 16, 2011 Share Posted June 16, 2011 Ah, makes sense. Thanks for the explanation (and the illustration, which was very helpful). Or would that be "explanatation" and "illustratation"? (sorry, couldn't resist) Link to comment Share on other sites More sharing options...
