LithiaWx Posted June 8, 2011 Share Posted June 8, 2011 I'm trying to come up with a different color table, one that really looks nice and stands out. If anyone has an example of one they like if you could pleas post it with the actual table and a pic or what it looks like. Thanks, Pearson aka Hawksfan Link to comment Share on other sites More sharing options...
LithiaWx Posted June 8, 2011 Author Share Posted June 8, 2011 Try GR Level X stuff TON of tables there - with some examples (In case you haven't been there already) thanks you Link to comment Share on other sites More sharing options...
B-Rent Posted June 9, 2011 Share Posted June 9, 2011 Has anyone here made their own tables? I took one from that site and modified it to my liking. I'll post it later on when I am on my laptop if I remember. Link to comment Share on other sites More sharing options...
Isopycnic Posted June 9, 2011 Share Posted June 9, 2011 Has anyone here made their own tables? I took one from that site and modified it to my liking. I'll post it later on when I am on my laptop if I remember. I've made a few over the years. It is easy as long as you can use 256 RGB color charts and some basic understanding. Here is a good primer: http://www.allisonhouse.com/grlevelx/manual/grlevel3/files_color_table.htm More info: http://66.228.121.56/trials/viewtopic.php?f=8&t=476&view=previous Link to comment Share on other sites More sharing options...
Isopycnic Posted June 9, 2011 Share Posted June 9, 2011 Try GR Level X stuff TON of tables there - with some examples (In case you haven't been there already) Great site! http://www.grlevelxstuff.com/index.php?categoryid=14 Link to comment Share on other sites More sharing options...
BadgerWXman Posted June 9, 2011 Share Posted June 9, 2011 Has anyone here made their own tables? I took one from that site and modified it to my liking. I'll post it later on when I am on my laptop if I remember. I went through a few week long period where I could do nothing but grind out color tables... here are the ones I mostly use out of those: BR: SW: or this one (more suited for just analyzing turbulence) ET: VIL: VILD: NROT: The files are all available on grlevelxstuff in the downloads section... the titles are "Badger ____" Link to comment Share on other sites More sharing options...
B-Rent Posted June 12, 2011 Share Posted June 12, 2011 I went through a few week long period where I could do nothing but grind out color tables... here are the ones I mostly use out of those: The files are all available on grlevelxstuff in the downloads section... the titles are "Badger ____" I use your VILs and SWs. Have since I first downloaded the program. Thanks! Link to comment Share on other sites More sharing options...
brettjrob Posted June 13, 2011 Share Posted June 13, 2011 I find the default color tables shipping with the latest versions of GR3 to be a major hindrance to interpreting the data. The reflectivity scheme has far too high of a lower threshold (20 dBZ, I believe) to properly monitor boundaries and other non-precip echoes, and the velocity is not nearly sensitive enough for my tastes. I've attached my favorite tables for both. I think I got them both from GRLevelXStuff awhile ago. awips_reflectivity.txt awips_velocity.txt Link to comment Share on other sites More sharing options...
BadgerWXman Posted June 13, 2011 Share Posted June 13, 2011 I find the default color tables shipping with the latest versions of GR3 to be a major hindrance to interpreting the data. The reflectivity scheme has far too high of a lower threshold (20 dBZ, I believe) to properly monitor boundaries and other non-precip echoes, and the velocity is not nearly sensitive enough for my tastes. I've attached my favorite tables for both. I think I got them both from GRLevelXStuff awhile ago. I like having a few in my back pocket for different situations. My usual go to for reflectivity has full transparency at 21dbz.. 50% transparency at 13dbz and 0% at 5dbz. That works really well for filtering out ground clutter and considering I work the morning shift, there's often a lot of that to deal with (not always). I have the same color table with full transparency all the way down to 0dbz and another one that goes down to -30 for select situations like if I need to see an outflow boundary or if I'm tracking snow, etc. Link to comment Share on other sites More sharing options...
BadgerWXman Posted June 13, 2011 Share Posted June 13, 2011 I use your VILs and SWs. Have since I first downloaded the program. Thanks! No problem! Glad they're at least getting some use! My co workers made fun of me for how long I spent working on them lol... Link to comment Share on other sites More sharing options...
B-Rent Posted June 14, 2011 Share Posted June 14, 2011 No problem! Glad they're at least getting some use! My co workers made fun of me for how long I spent working on them lol... I didn't even edit them like I do everything else. I just recently made a POSH and MEHS with transparancy. I don't remember what I based it off of. I'll post it next time I'm online at home. Link to comment Share on other sites More sharing options...

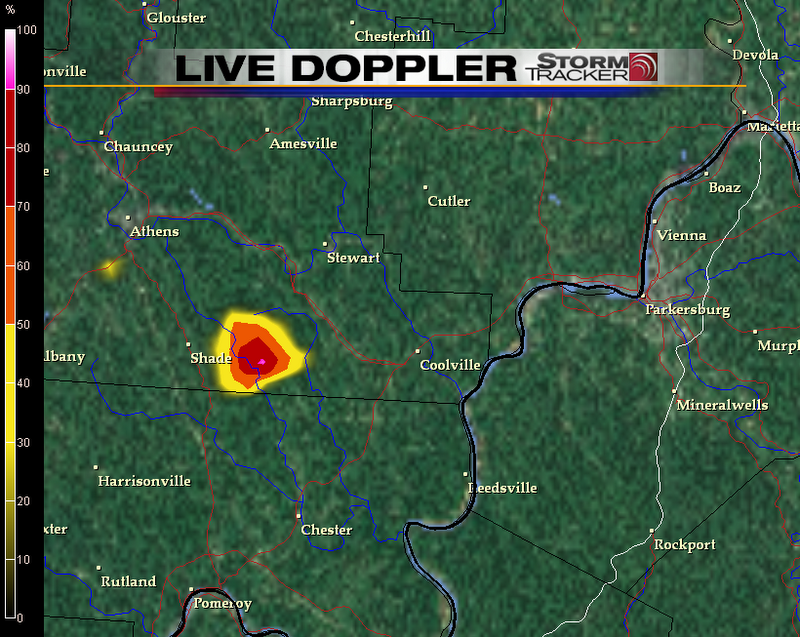

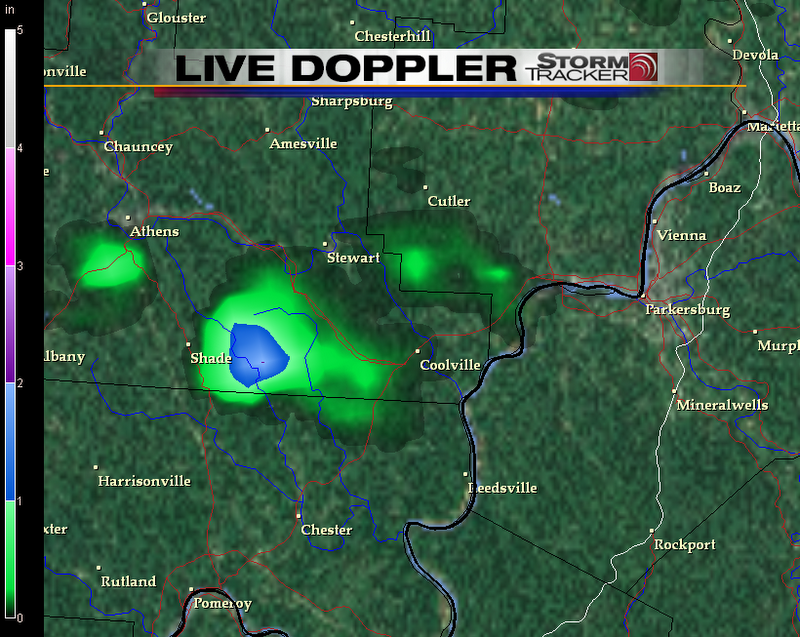

BadgerWXman Posted June 14, 2011 Share Posted June 14, 2011 I didn't even edit them like I do everything else. I just recently made a POSH and MEHS with transparancy. I don't remember what I based it off of. I'll post it next time I'm online at home. Oh nice, I made those too... just didn't see a place on grlevelx to upload them. I'll post them here: MEHS: units: in step: 1 color4: 0 0 0 0 75 color: .25 0 224 62 117 255 155 color: 1 0 85 209 133 182 255 color: 2 105 0 153 212 154 254 color: 3 255 0 255 253 184 255 color: 4 200 200 200 255 255 255 color: 5 255 255 255 POSH: units: % step: 10 color4: 0 0 0 0 0 color: 30 247 230 30 247 230 30 color: 50 237 87 2 237 87 2 color: 70 184 0 2 184 0 2 color: 90 255 10 211 255 255 255 color: 100 255 255 255 Link to comment Share on other sites More sharing options...
